Graphical LCD 128x64 (Part-2)

Hope you guys liked my last post on Graphical Lcd 128x64.
In that post i explained what is graphical Lcd, it's internal block diagram and commands, then a program is there to demonstrate the working of Graphical Lcd. We used mikroC compiler for writing our program, but now in post i will share my Graphical Lcd libraries with you which are written for xc8 compiler in MPLAB-X development environment.
The libraries functions are inspired from mikroC functions and i tried to keep most of the functions similar to the one available in mikroC compiler.
In this version most of the basic functions are written, which are as follow:

 // Basic Function
 void Glcd_Init( void );
 void Glcd_Set_Side( u8_t x_pos);
 void Glcd_Set_X( u8_t x_pos );
 void Glcd_Set_Page( u8_t page );
 void Glcd_Write_Data( u8_t data );
 u8_t Glcd_Read_Data( void );
 // Advanced Function Prototypes
 void Glcd_Fill( u8_t pattern );
 void Glcd_Dot( u8_t x_pos, u8_t y_pos, u8_t color );
 void Glcd_V_Line ( u8_t y_start, u8_t y_end, u8_t x_pos, u8_t color);
 void Glcd_H_Line( u8_t x_start, u8_t x_end, u8_t y_pos, u8_t color);
 void Glcd_Image( const u8_t *image);
 void Glcd_Circle( s8_t x_center, s8_t y_center, u8_t radius, u8_t color);
 void Glcd_Line( s16_t x_start, s16_t y_start,
         s16_t x_end, s16_t y_end, u8_t color);
 void Glcd_Rectangle( u8_t x_upper_left, u8_t y_upper_left,
     u8_t x_bottom_right, u8_t y_bottom_right,
     u8_t color);
 void Glcd_Write_Char(u8_t chr, u8_t x_pos, u8_t page_num, u8_t color);
 void Glcd_Write_Text(char *text, u8_t x_pos, u8_t page_num, u8_t color);

Schematic Diagram

Schematic Diagram

In this tutorial i will also show how to generate fonts using GLCD Font Creator and how to generate codes for Bitmap Images using Glcd Bitmap Editor. These both things are shown in video embed below.

Note:
Glcd Bitmap Editor comes with mikroE compilers, so you have to download any mikroE compiler to use this software for free.
Demo Images

Welcome Screen

Bitmap Image Display

Rectangle Display

Horizontal Lines Display

Vertical Lines Display

Line Display

Circle Display

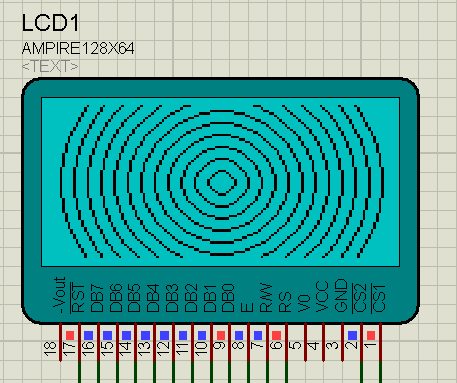

Concentric Circles Display

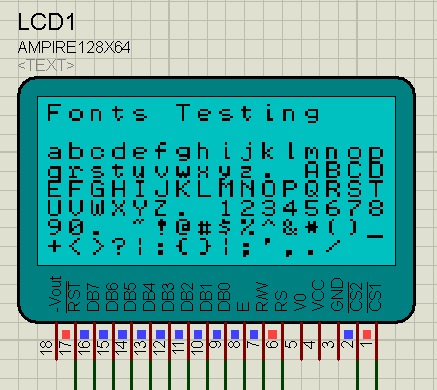

Fonts Display

Watch the following video, to get a proper understanding of the libraries, font generation, and generating codes for images.

Get the Project from GitHub.
